Description

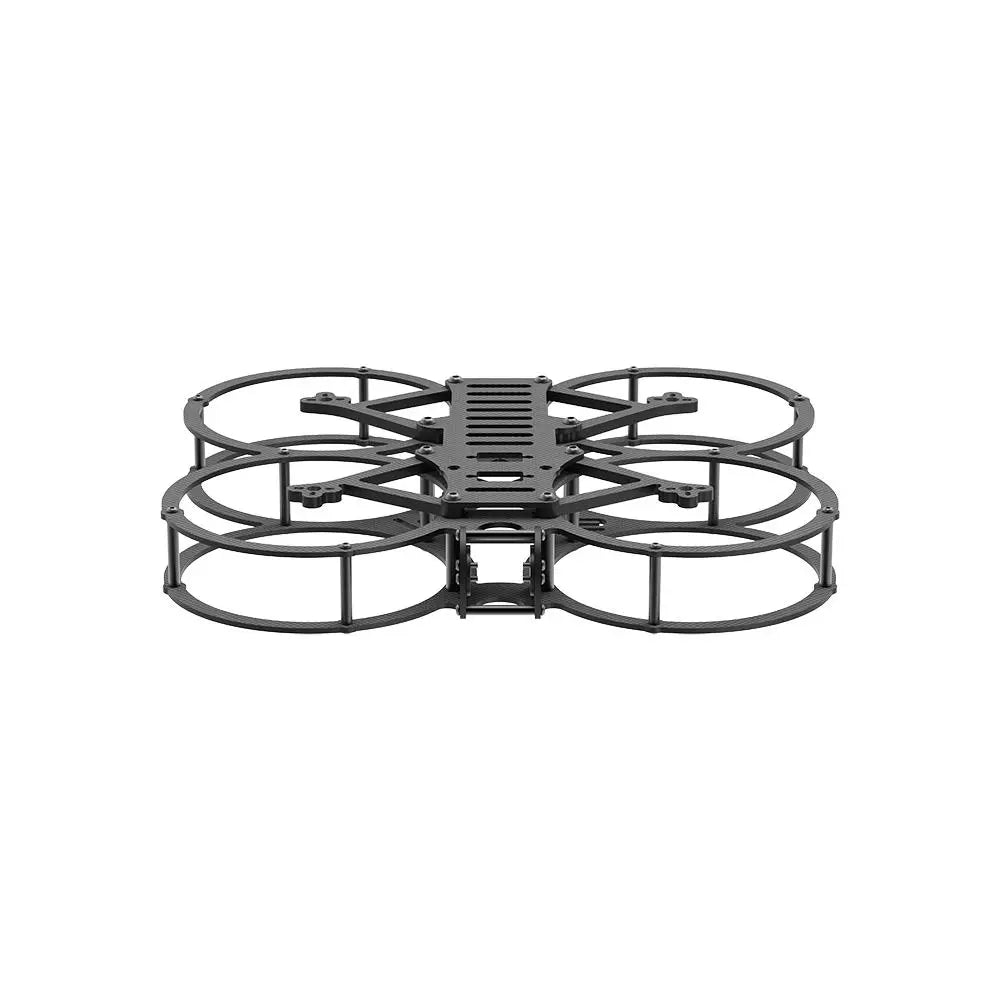

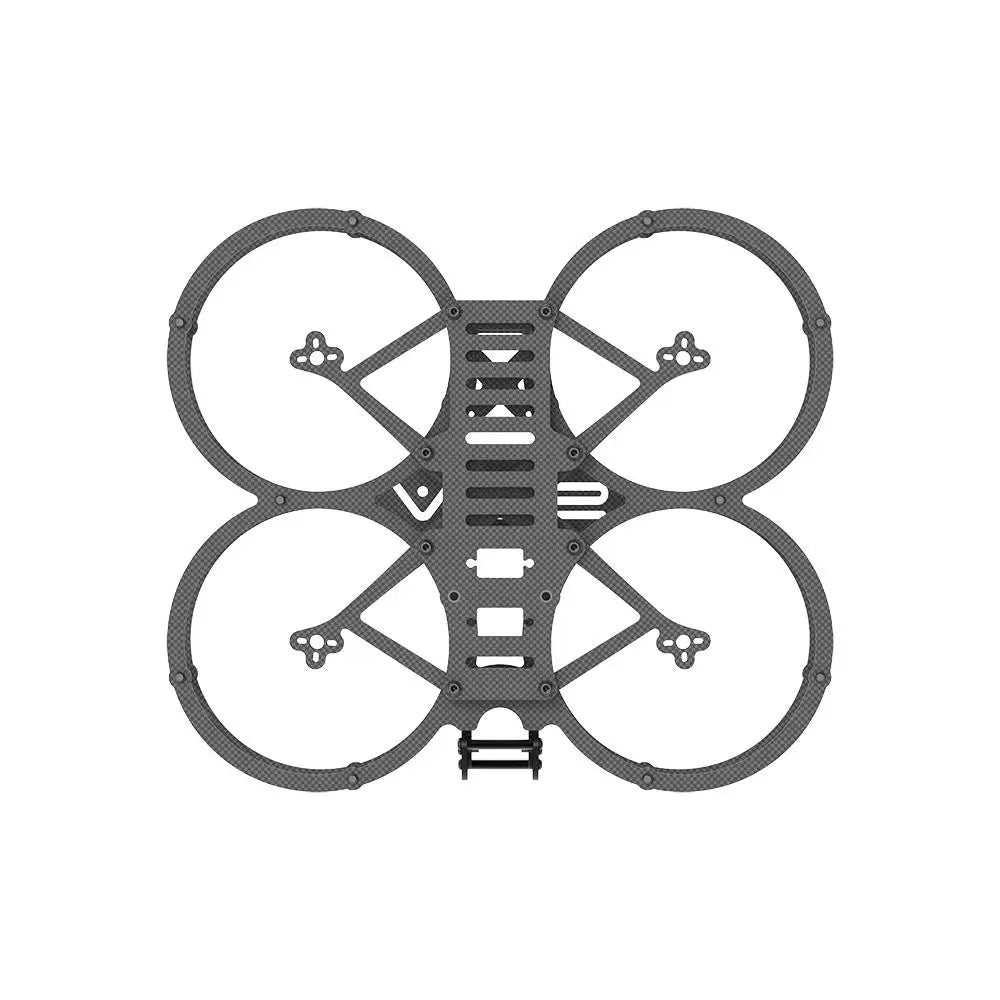

AOS Cine35 EVO V1.2 Frame Kit

The AOS Cine35 EVO V1.2 Frame Kit is designed for filmmakers and FPV enthusiasts seeking a lightweight yet durable frame for their cinematic drones. Constructed from high-quality materials, this frame ensures stability and resilience, allowing you to capture stunning aerial footage with ease. The EVO V1.2 design features improved aerodynamics and increased mounting options, making it perfect for various camera configurations and payloads. With a compact footprint and thoughtful engineering, the AOS Cine35 is ideal for both indoor and outdoor filming, offering excellent performance in diverse environments.

Key Features:

• Lightweight and durable construction for optimal flight performance
• EVO V1.2 design enhances aerodynamics and stability

• Versatile mounting options for different camera setups
• Ideal for capturing high-quality aerial footage in various conditions
• Compact size suitable for both indoor and outdoor use

• Why Choose AOS Cine35 EVO V1.2 Frame Kit?

  Elevate your aerial cinematography with the AOS Cine35 EVO V1.2 Frame Kit, engineered for performance, versatility, and reliability in all your filming projects.

  Description

  The latest version of this frame is the AOS Cine35 EVO. It has updated camera plates to support the DJI O3 Air Unit as well as all other 19-20mm FPV cameras.

  Features

  Designed for 3.5 inch props, no props in view.

  4 mm Truss Arms

  Up to three 25.5 or 20 mm stacks (front, center and rear)

  One 30.5mm stack (center)

  32x32mm GoPro mounting holes in top plate with installed press-nuts

  XT60 pass through top plate

  Captive battery strap slots for lengthwise or toilet tank mounting

  Fits 19-20mm FPV cameras including DJI O3

  Recommended motor size 2004

  9×9 up to 12x12mm motor mounting

  Standoffs, carbon and hardware included

  Changelog

  July 13, 2023: The frames have been updated with silicone dampers and XT30 mounting hardpoints.

  Specifications

  Product Name: AOS Cine35 EVO V1.2 Frame Kit

  Frame wheelbase: 161.5mm

  Frame Dimension: L128*W99*H35 mm  L233*W204*H35 mm (with propguard)

  Arm Thickness: 4mm

  Top Plate Thickness: 2mm

  Bottom Plate Thickness: 2mm

  Upper Plate Thickness: 2mm

  Motor Mounting: 9x9mm 12*12mm

  VTX Mounting: 20*20 Φ2mm 25.5*25.5 Φ2mm

  Weight: 134 grams

  Packing List

  1 x AOS Cine35 EVO V1.2 Frame Kit

  1 x Screw Bag

  1 x Battery Strap
