Description

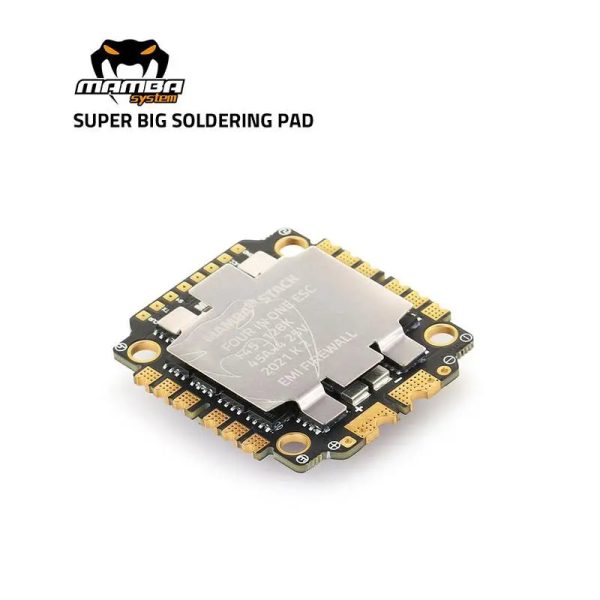

Diatone MAMBA F45_128K BL32 4in1 ESC 45A 6S

Boost your drone’s efficiency with the Diatone MAMBA F45_128K BL32 4in1 ESC, a high-performance electronic speed controller built for precision and power. With a 45A current rating and support for 6S batteries, this ESC is designed to deliver smooth, reliable power for racing and freestyle drones. The advanced BL32 firmware with a 128K refresh rate ensures optimal motor control and responsiveness, giving you a competitive edge and precise handling in the air.

The MAMBA F45 ESC’s compact, lightweight design allows for easy installation in various frames, making it ideal for builds where space and weight are crucial. Constructed with quality components, this ESC is durable and ready to withstand intense flying conditions. The integrated BEC provides stable power to your receiver and other electronics, enhancing the overall performance and reliability of your setup. Upgrade your drone with the Diatone MAMBA F45_128K BL32 4in1 ESC and experience superior control and durability in every flight.



This ESC has 30×30 mounting and can continuously provide 45A at 6s, enough for freestyle 5 drones. The ESC runs BLHeli_32, which is faster and has more resolution than BLHeli_s ESCs.

ESC Specification：

INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:45A×4
BURST CURRENT:55A (10S)
BEC: No
Target：BLHeli_32 MAMBA F45_128K
SOFT: Dshot300 600 1200
PWM:24~128K
TVS Protection: Yes
MOUNTING: 30.5mm M3

Supply :
8pin sh1.0 ×2
AMASS Original XT60
High-Frequency 470uF 35V
