Description

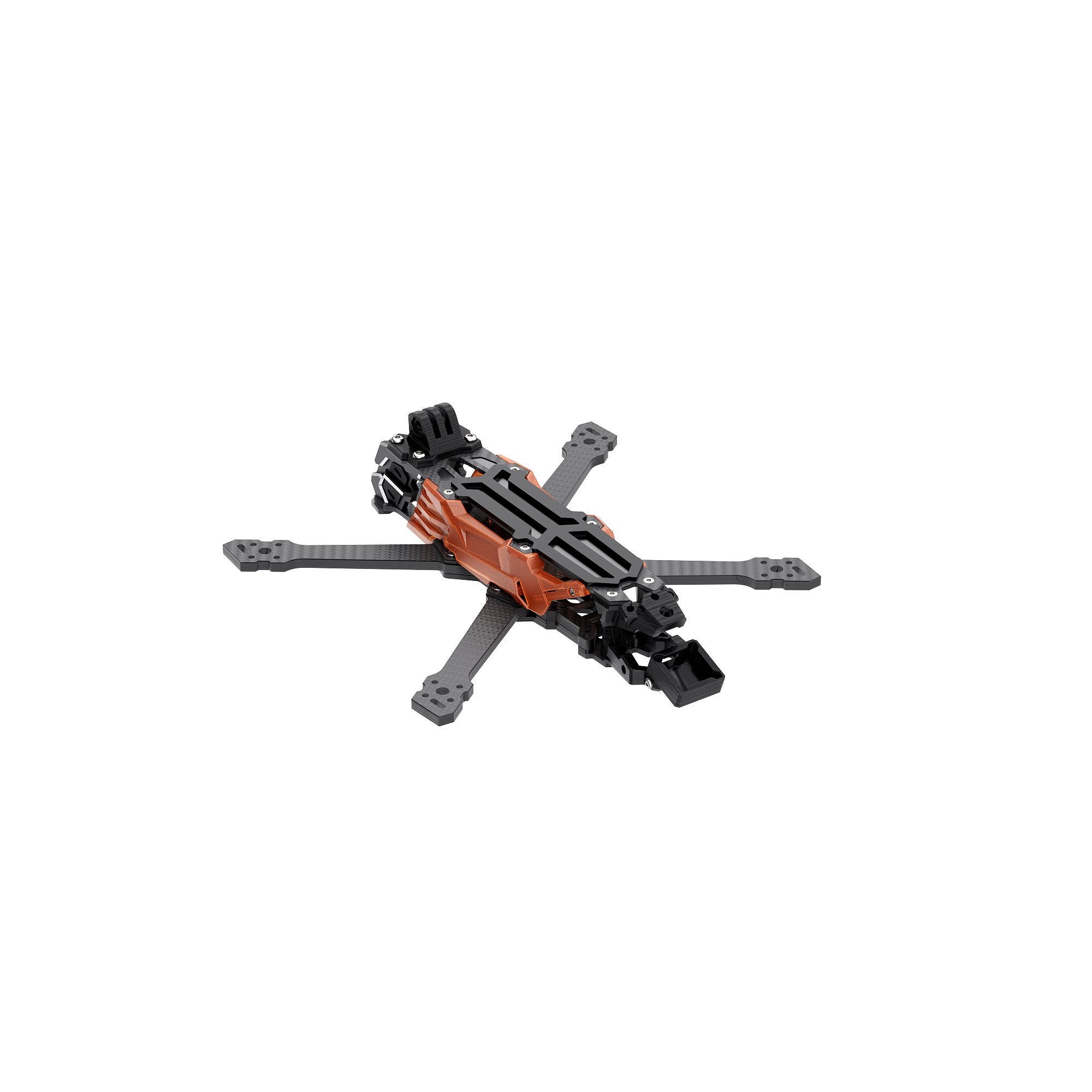

GEPRC GEP-Vapor-X O4 Pro Frame

The GEPRC GEP-Vapor-X O4 Pro Frame is precision-designed for the DJI O4 Air Unit Pro, offering a lightweight yet durable carbon fiber structure that enhances stability, precision, and freestyle performance.

With a newly redesigned aluminum camera mount and vibration-damping silicone, this frame provides enhanced video clarity and seamless compatibility with the DJI O4 Pro VTX. Its mech-inspired side panels give it a bold, futuristic aesthetic while also adding extra protection.

The XH structural design ensures maximum stability and handling, while the quick-release system allows for easy repairs and maintenance. Whether you’re a freestyle FPV pilot or a racer, the GEP-Vapor-X O4 Pro frame delivers top-tier performance.

Features

1. 5mm wide carbon fiber arms for better rigidity and durability.

2. Dual protection with camera guard side panels and a front lip design for better impact resistance.

3. Quick-release design for easy repairs and maintenance.

4. Redesigned aluminum camera mount, perfectly matched to the O4 Pro VTX.

5. New mech-inspired side panels with a bold, sharp design.

6. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.

X5 Specifications

• Model: GEP-Vapor-X5 O4 Pro Frame
• Wheelbase: 230mm
• Top Plate Thickness: 2.0mm
• Middle Plate Thickness: 2.0mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Hole Size: 20x20mm 30.5×30.5mm
• VTX Mounting Hole Size: 20x20mm 25x25mm 30.5×30.5mm
• Motor Mounting Hole Size: 16x16mm
• Camera Mounting Hole Size: 19mm 20mm
• Recommended Propeller: 5-inch
• Weight: 206±5g

• X6 Specifications

  • Model: GEP-Vapor-X6 O4 Pro Frame
  • Wheelbase: 254.5mm
  • Top Plate Thickness: 2.0mm
  • Middle Plate Thickness: 2.0mm
  • Arm Thickness: 5.0m
  • Bottom Plate Thickness: 2.5mm
  • FC Mounting Hole Size: 20x20mm 30.5×30.5mm
  • VTX Mounting Hole Size: 20x20mm 25x25mm 30.5×30.5mm
  • Motor Mounting Hole Size: 16x16mm
  • Camera Mounting Hole Size: 19mm 20mm
  • Recommended Propeller: 6-inch
  • Weight: 214.1±5g

  • X5 Includes

    1 x GEP-Vapor-X5 O4 Pro Frame

    2 x M20*250mm battery straps

    2 x Battery silicone Pads

    1 x Set of screws

    1 x Printout package

    1 x L-shaped screwdriver (1.5mm)

    1 x L-shaped screwdriver (2mm)

    1 x L-shaped screwdriver (3mm)

    1 x M8 wrench

    X6 Includes

    1 x GEP-Vapor-X6 O4 Pro Frame

    2 x M20*250mm battery straps

    2 x Battery Silicone Pads

    1 x Set of screws

    1 x Printout package

    1 x L-shaped screwdriver (1.5mm)

    1 x L-shaped screwdriver (2mm)

    1 x L-shaped screwdriver (3mm)

    1 x M8 wrench
