Description

GEPRC TAKER F722 BT 8Bit 60A STACK

Features

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7. With TAKER H60_BLS 60A 4IN1 ESC, silky flight

8. Directly plugs into the DJI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. [email protected] + 5V@3A dual independent BEC

Specifications

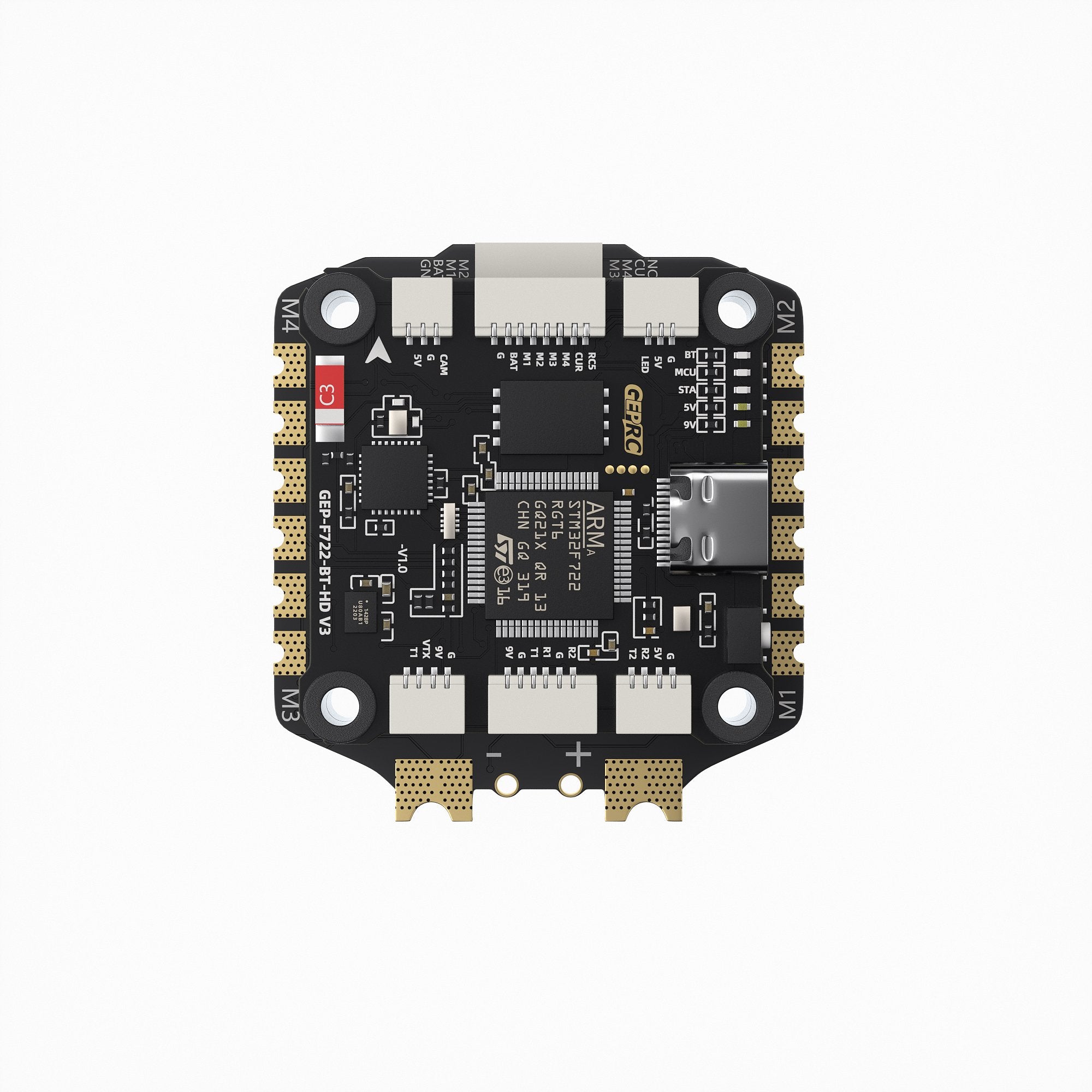

GEP-F722-BT-HD V3 Flight Controller

• MCU: STM32F722
• IMU：ICM42688-P(SPI)
• Air Unit Connection: Directly plugs into the DJI Air Unit
• Black Box: 512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w AT7456E chip
• BEC: 5V@3A, [email protected] dual BEC
• Firmware Target: GEPRCF722_BT_HD_V3
• Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
• Input Voltage: 3-6S LiPo
• UART: 5 groups (UART4 fixed for Bluetooth)
• Power Filter: Integrated LC filter
• Weight: 8.2g

• TAKER H60_BLS 60A 4IN1 ESC

  • Input Voltage: 3-6S Lipo
  • Ammeter: Support
  • Continue Current：60A
  • Burst Current: 65A (5 second)
  • Support Protocol: Dshot 150 300 600
  • Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
  • Weight: 14.9g
  • Target: B_X_30

  •  Includes

    1 x FC board

    1 x ESC board

    1 x Capacitor

    1 x O3 3-in-1 connection cable

    1 x FC adapter cable

    1 x sh1.0 4pin silicone cable

    1 x Camera connection cable

    1 x VTX connection cable

    1 x XT90 power cable

    4 x M3*30 screws

    4 x M3*25 screws

    8 x Nylon nuts

    12 x Silicone anti-shake pads
