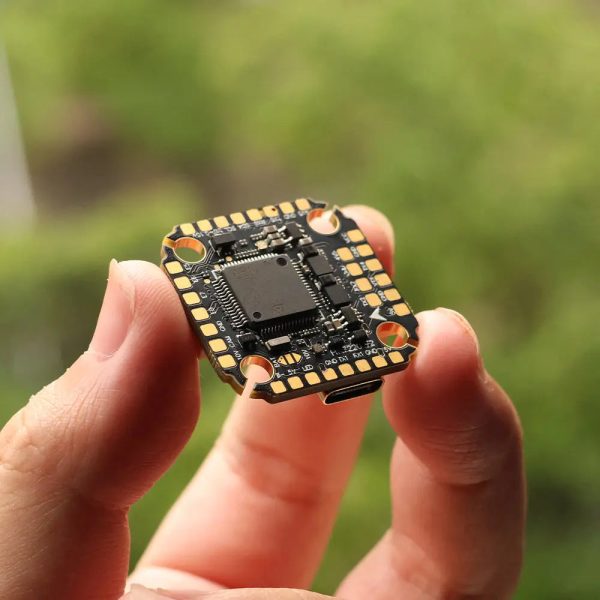

HAKRC 7220V2 Flight Controller

The HAKRC 7220V2 Flight Controller is an advanced, versatile flight control system tailored for FPV drone enthusiasts looking for precision and performance. Equipped with a powerful F7 processor, this controller delivers fast response times and efficient data processing, enabling smoother and more stable flights, even under demanding conditions. The 7220V2 is compatible with up to 8 motors and supports both Betaflight and Cleanflight firmware, offering flexibility and customization options for a wide range of drone builds.

Built for durability and ease of use, the HAKRC 7220V2 has a compact design that fits easily into various drone frames. Its layout features conveniently positioned solder pads, making installation straightforward and efficient for both beginners and experienced pilots. With its high-speed processing and robust compatibility, the HAKRC 7220V2 Flight Controller is a reliable choice for pilots aiming to enhance their FPV experience.



1. The PCB adopts high-end 6-layer 1oZ thick copper sheet, with strong anti-interference ability。

2. Adopting a dual gyroscope design to reduce the error of one gyroscope。

3. Adopting industrial grade LDO, resistant to high temperature。

4. Equipped with DJI sky end straight socket, easy to install and solder free。

5. Reserve an external LED light strip with a 10V power supply, and customize the remote control channel for light strip switch control。

6. The image transmission power supply can be freely turned on or off by setting a switch channel at the ground station, facilitating ground reference adjustment。

7. Adopting high-quality Murata capacitors from Japan, with strong filtering performance。

8. Eight motor control signal outputs。

  FC Specifications：

Size: 29 * 29mm (20mm-20mm mounting hole)

Packaging size: 64 * 64 * 35mm

Input voltage: 2S-6S Lipo

Net weight of product: 6g

Packaging weight: 37g

Flight control parameters:

CPU: STM32F722RET6

IMU: ICM42688 dual gyroscope

OSD: AT7456E

Barometer: integrated

Black box: 16M

BEC: 5V 2A

BEC: 10V 2A

LED: Supports external adjustable LED

Sensor: built-in current sensor

Firmware version: HAKRCF722V2

Receiver: Frsky Futaba Flysky TBS Crossfire DSMX: DSM2 receiver

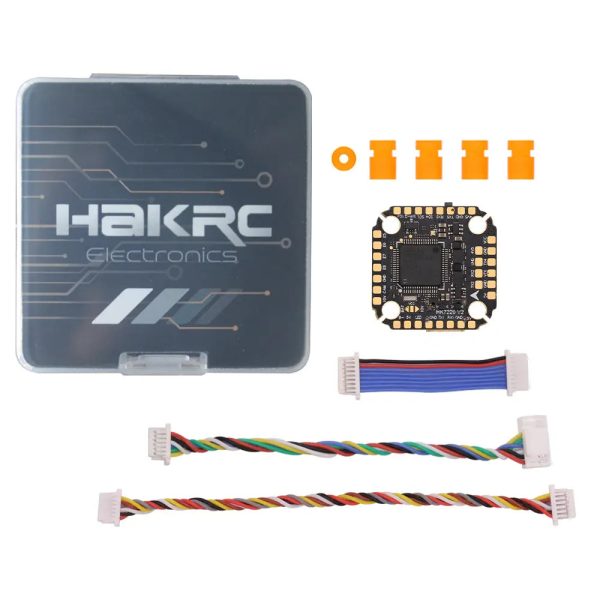

Packing list:

1x F7220V2 flight controller

4x M2 shock absorber

1x 8 cables

1x DJI FPV cable

1x Dajiang O3 aviation crew three in one cable

1x instruction manual
