Description

NewBeeDrone Prusa MK3S Print Bed mount Quad Bearing Upgrade Kit

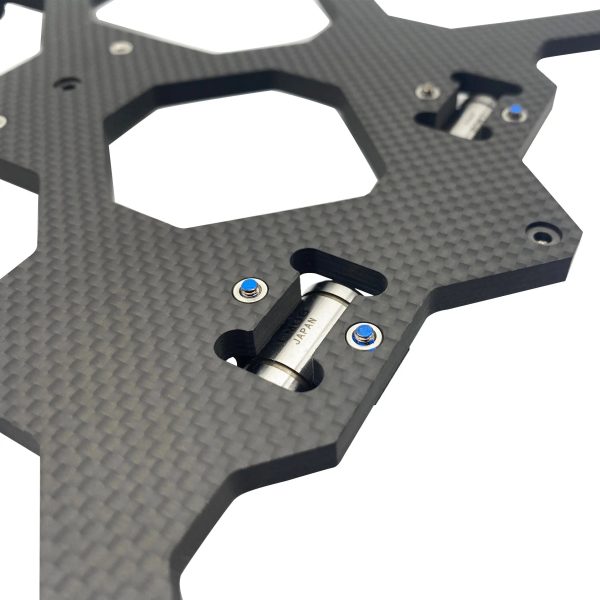

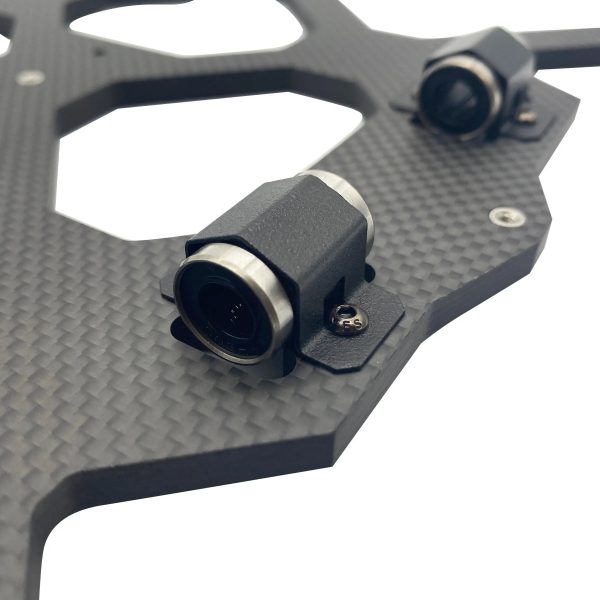

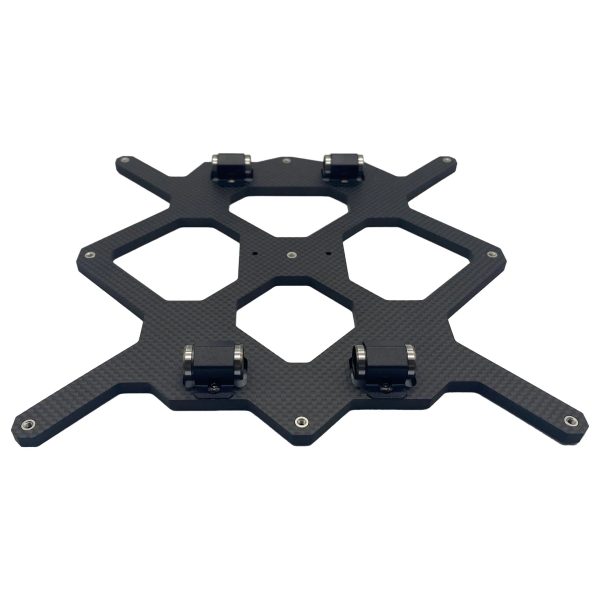

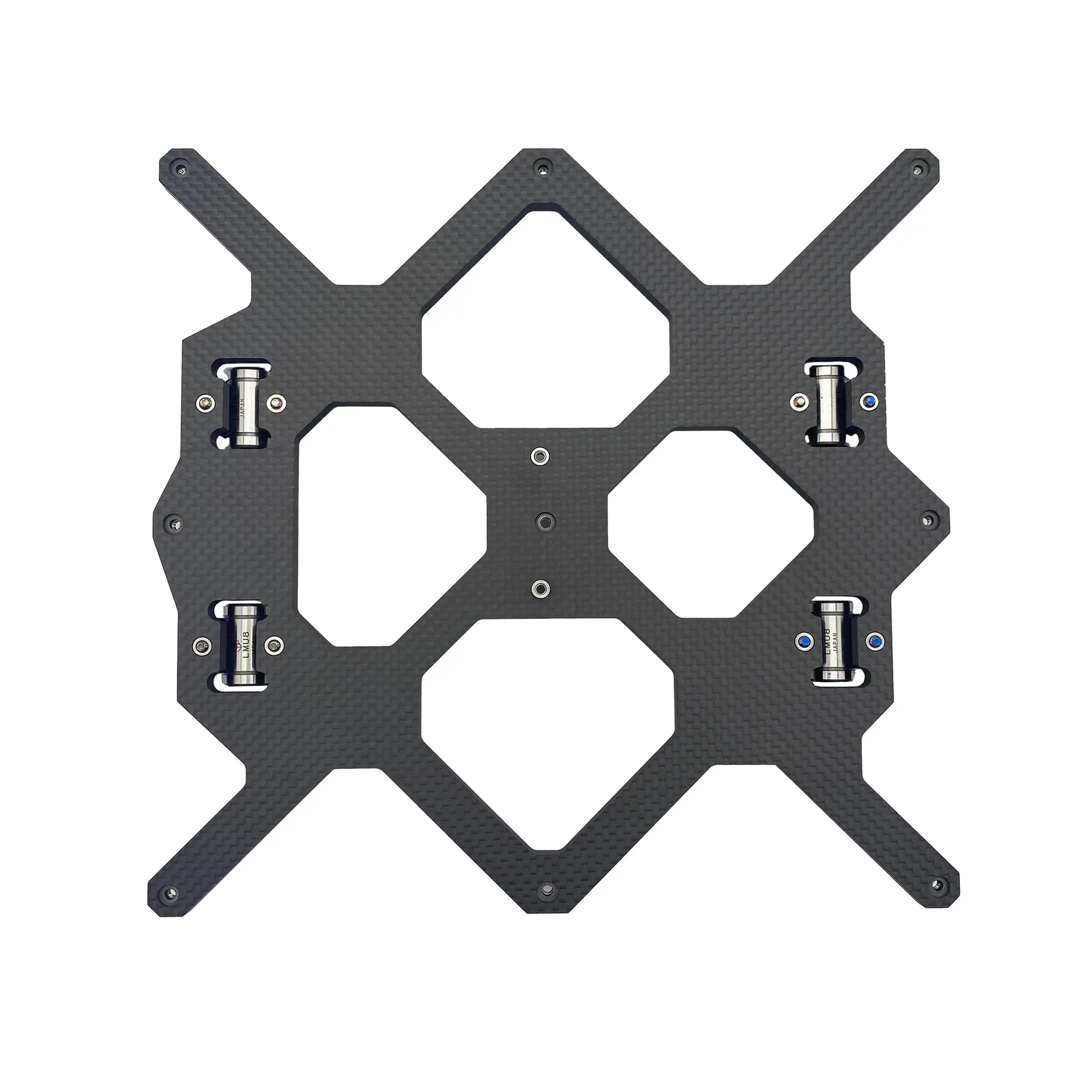

Elevate your 3D printing performance with the NewBeeDrone Prusa MK3S Print Bed Mount Quad Bearing Upgrade Kit. This kit is designed to enhance the stability and precision of your Prusa MK3S printer by replacing the standard bed mount with a quad-bearing system. The added bearings significantly reduce wobble and improve print accuracy, resulting in higher quality prints and better layer adhesion.

Key Features of NewBeeDrone Prusa MK3S Print Bed Mount Quad Bearing Upgrade Kit:

• Quad Bearing Design: Provides increased stability and reduces bed movement for superior print quality.

• Easy Installation: Designed for straightforward installation, making it user-friendly for both beginners and advanced users.

• Durable Construction: Built with high-quality materials to withstand the demands of regular printing.

• Why Choose NewBeeDrone Prusa MK3S Print Bed Mount Quad Bearing Upgrade Kit? If you re looking to upgrade your Prusa MK3S for improved printing performance, the NewBeeDrone Print Bed Mount Quad Bearing Upgrade Kit is the perfect solution. This kit enhances stability and precision, ensuring that every print is executed with the utmost accuracy.

  Pros:

  • Enhanced print stability and accuracy.
  • Easy to install, with clear instructions.
  • Durable construction for long-term use.

  • Cons:

    • May require adjustments to the printer settings after installation.
    • Compatibility limited to Prusa MK3S models.

    • The kit comes with

      1x 6mm Carbon fiber Quad Bearing mount
      4x Misumi LM8UU Linear Bearing
      4x Bearing holder
      10x M3 Steele screw for bearing holder

      Installation

      1. Remove your the heat bed screws and take out the heat bed, keep the original screw and stand-off, we are going to use it later.

      2. Unscrew 6 locknut to release the original mount from the bearing, unscrew the belt holder.

      3. Cut the rod holder zip ties to release the rod and remove the original bearing. After you remove the original bearing, please use microfiber cloth to clean up the rod.

      4. Install the Misumi LM8UU bearing on the carbon fiber mount, use the metal holder and the screw to secure the bearing. (At this step, please make sure the bearing are placing in the right position)

      5. Install both rod into the bearing and mount it back to the frame, install the belt holder back to the carbon fiber mount.

      6. Put on the stand-off from took out from step 1, the carbon fiber plate we make a stand-off sink hole to make it easy to hold the stand-off in position. Put on the heat bed and use the step 1 screw to lock in the heat bed.

      7. Redo the First layer calibration, set the value to 0 and adjust it to the right position during the calibration.

      Now all set!  Enjoy the printing!

      Comparison for the Original base vs the Carbon fiber base.
