Description

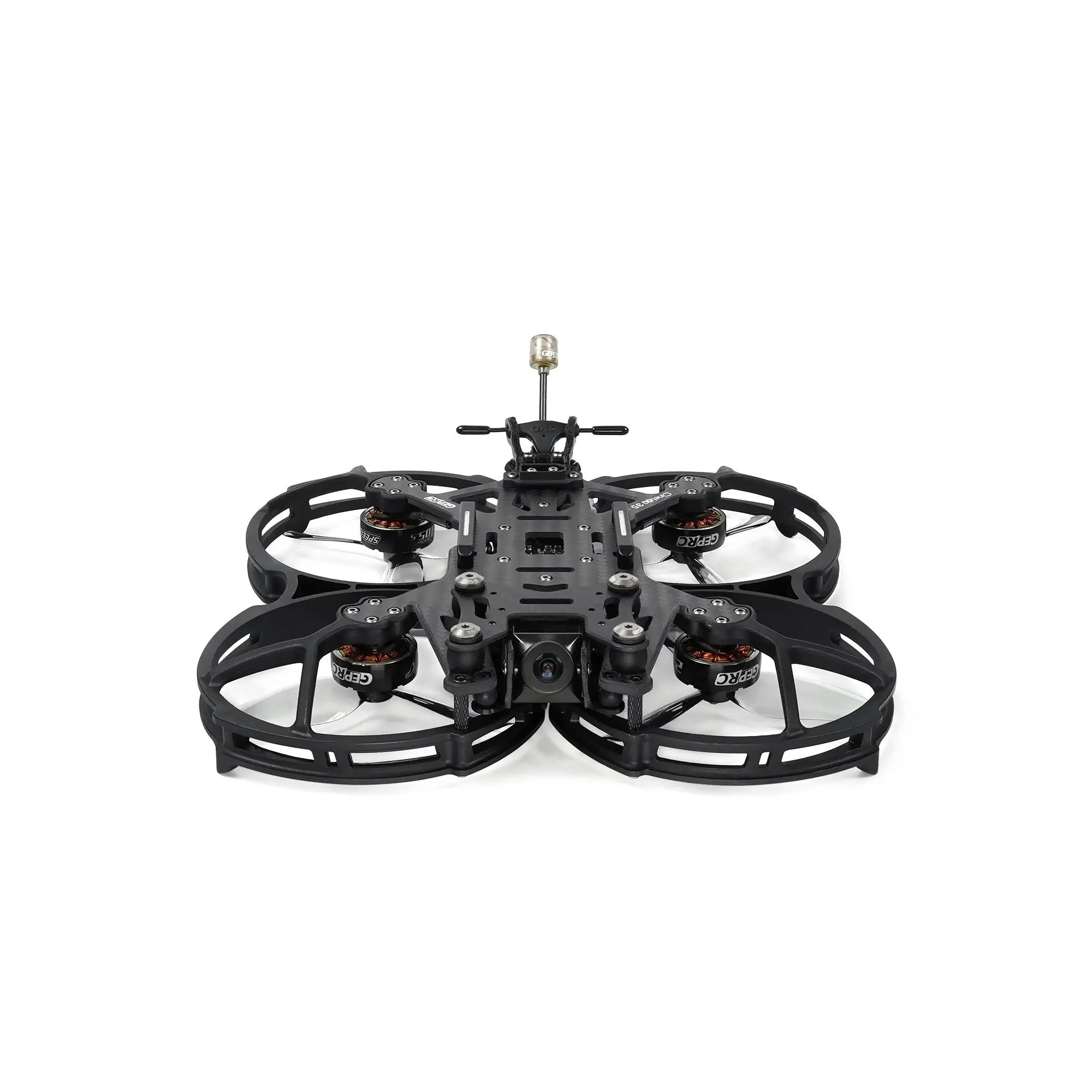

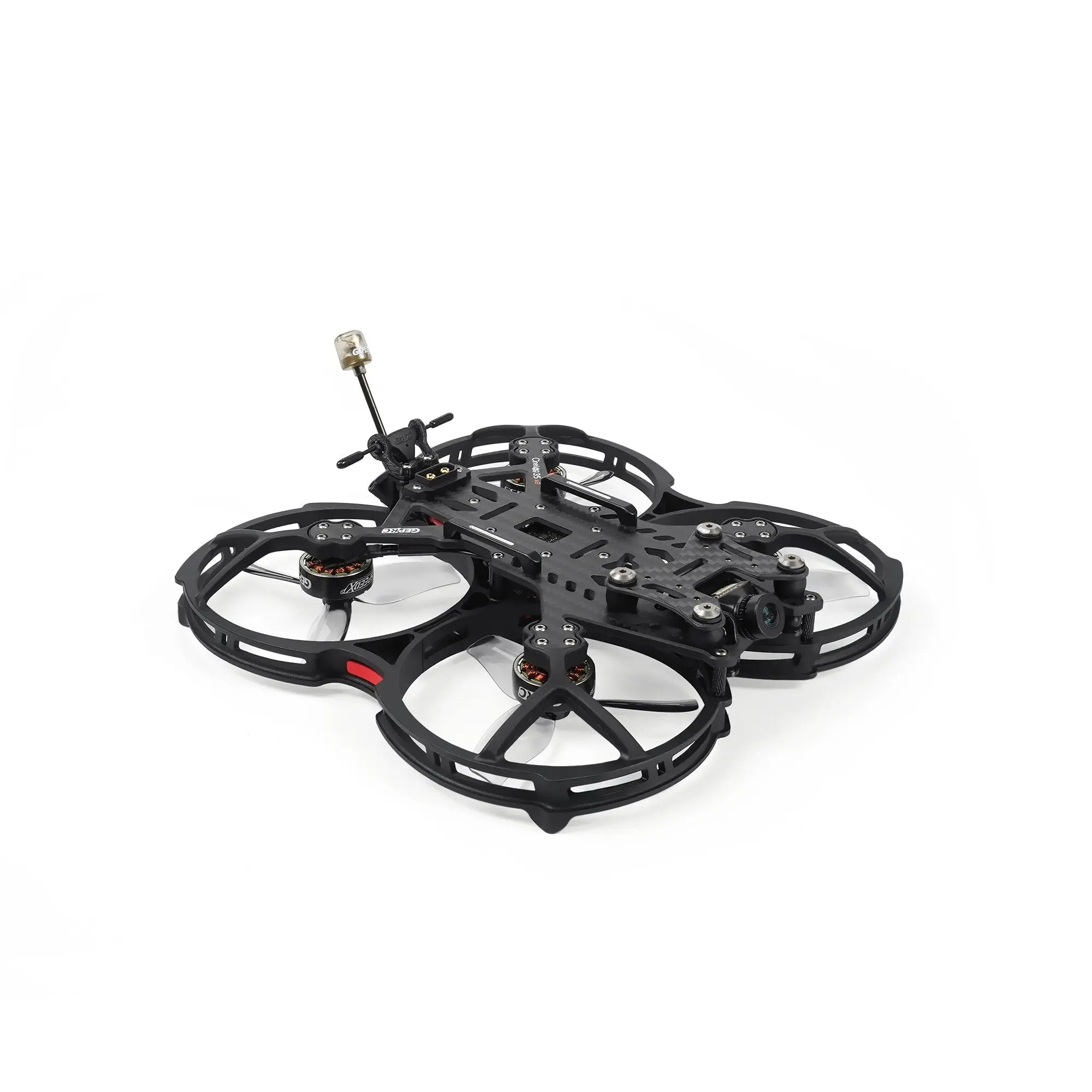

CineLog35 V2 Analog FPV Drone-PNP

Introducing the CineLog35 V2 Analog FPV Drone – PNP, your ultimate tool for capturing stunning aerial cinematography. This plug-and-play (PNP) drone is designed for both seasoned pilots and newcomers, offering an exceptional balance of performance and ease of use. With its lightweight carbon fiber frame and powerful propulsion system, the CineLog35 V2 ensures stable and smooth flights, making it perfect for filming dynamic shots and immersive videos.

Equipped with an analog FPV system, this drone provides real-time video transmission for precise maneuvering and stunning views from above. Its durable construction and advanced flight features make it an excellent choice for both recreational flying and professional video production. Elevate your FPV experience with the CineLog35 V2.

Key Features:

• Plug-and-Play Design: Easy setup for immediate use.

• Stable Flight Performance: Lightweight carbon fiber frame enhances stability.

• High-Quality Analog FPV: Real-time video transmission for improved control.

•




  Summary

  Gathering the experience and evolution of the GEPRC team in all aspects, CineLog35 V2 is finally launched to the market with better performance.

  CineLog35 v2 version integrated with O3 VTX. The CineLog35 V2 version of the main carbon plate and injection protection frame increased the 7075 aluminum column for structural strengthening.

  The battery mounting method uses a tie with 7075 aluminum parts fixed. The power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame for O3 Air Unit adds a memory card and USB port for easy data reading.

  Equipped with F722-45A AIO and the new SPEEDX2 2105.5 motor, more power, with aggressive power system and faster response.

  This is a 3.5-inch HD FPV cinematic FPV drone that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors. The user’s satisfied voice is the motivation for us to move forward.

  Changelog

  May 8, 2023: CineLog35 V2 motor changed from SPEEDX2 2105.5-2150KV(6S) to SPEEDX2 2105.5-2650KV(6S).

  September 4, 2023: CineLog35 V2 changed from GEP-M8U GPS to GEP-M10 GPS.

  CLI Dump for CineLog35 V2: https: geprc.com downloads cinelog35-v2

  Feature

  1. New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
  3. Adopts the GEP F722-45A AIO V2 high performance flight controller.
  5. Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading
  7. For O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.
  9. SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.
  11. Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.
  13. Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
  15. Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.

  16. Specifications

      • Model: Cinelog35 V2 Analog
      • Frame: GEP-CL35 V2
      • Wheelbase: 142mm
      • Gimbal Plate: 2.0mm
      • Top Plate: 3.5mm
      • Bottom Plate: 1.5mm
      • FC system: GEP-F722-45A AIO V2
      • MCU: STM32F722RET6
      • Gyro: ICM 42688-P
      • OSD: Betaflight OSD w AT7456E chip
      • ESC: 8Bit 45A
      • VTX: GEPRC RAD 1W(UFL)
      • Camera: Caddx Ratel2
      • Antenna: GEPRC Peano 5.8 RHCP UFL
      • Motor: SPEEDX2 2105.5-2650KV (6S)
      • Propeller: HQProp D-T90MM
      • GPS: GEP-M10
      • CineLog35 V2 Analog TBSNanoRX weight: 263.8g
      • Receiver: PNP, GEPRC ELRS2.4G, TBS Nano RX
      • Recommended battery: LiPo 1050mah-1300mah
      • Flight time: 5′00″ -8′ 30″

      • Includes

        1 x CineLog35 V2 Analog

        2 x HQProp D-T90MM（2 pairs）

        2x M20*250mm battery strap

        2 x Battery Silicone Pads

        1 x Set of screws

        1 x L-shaped screwdriver (1.5mm)

        1 x L-shaped screwdriver (2mm)

        1 x L-shaped screwdriver (3mm)

        1 x M5 wrench

        1 x plastic tweezers

        1 x Antenna fixed tube (pair)

        1 x Keychain

        1 x GP Camera Mounting Base

        1 x Naked GP Camera Mounting Base

        1 x Antenna Mounting Base

        Screw package includes:

        2x cup head screws M2*18

        2x round head screws with pad M2*5.5

        1x round head screws M2*12

        2x Rivet nut M2

        4x round head screws M2*8

        4x round head screws M2*7

        4x round head screws M2*6

        2x round head screws M2.5*6

        2x hexagonal screw M1.6*8

        1x Flange nuts M5

        2x Press Rivet Nuts_Brass color M2*1.9-OD4.9

        2x Iron nut M2

        2x Iron nut M2

        2x Camera gimbal shock absorbing rubber

        Tips: GPS Rescue 4.4 | Betaflight：https: betaflight.com docs wiki archive GPS-Rescue-v4-4
